锻钢制螺纹管件系列 >> 螺纹管帽、管箍 >> 双头螺纹管箍 |
|
|
|
|
产品编号: |
6111155116 |
产品名称: |
双头螺纹管箍 |
规 格: |
根据客户要求 |
产品备注: |
STLWGG–1 |
产品类别: |
锻钢制螺纹管件系列 |
|
|
产 品 说 明 |

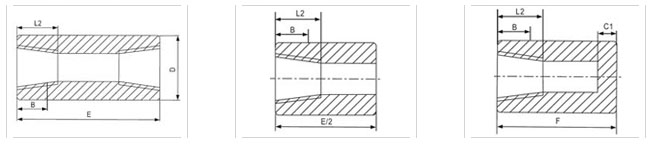

螺纹管帽、管箍结构图
螺纹管帽、管箍参数表
公称通径 Nominal Diameter |
管箍、管帽长度 The Length of Coupling and Cap |
外径 Outside Diameter |
管帽顶厚 End Wall Thickness |
螺纹长度 Length of Thread |
E |
F |
D |
Cmin |
DN |
NPS |
3000LB |
6000LB |
3000LB |
6000LB |
3000LB |
6000LB |
3000LB |
6000LB |
B |
L2 |
Sch160 |
XXS |
Sch160 |
XXS |
Sch160 |
XXS |
Sch160 |
XXS |
6 |
1/8 |
32 |
32 |
19 |
- |
16 |
22 |
5.0 |
- |
6.5 |
6.5 |
8 |
1/4 |
35 |
35 |
25 |
27 |
19 |
25 |
5.0 |
6.5 |
8.0 |
10.0 |
10 |
3/8 |
38 |
38 |
25 |
27 |
22 |
32 |
5.0 |
6.5 |
9.0 |
10.5 |
15 |
1/2 |
48 |
48 |
32 |
33 |
29 |
38 |
6.5 |
8.0 |
11.0 |
13.5 |
20 |
3/4 |
51 |
51 |
37 |
38 |
35 |
44 |
6.5 |
8.0 |
12.5 |
14.0 |
25 |
1 |
60 |
60 |
41 |
43 |
44 |
57 |
9.5 |
11.0 |
14.5 |
17.5 |
32 |
1.1/4 |
67 |
67 |
44 |
46 |
57 |
64 |
9.5 |
11.0 |
17.0 |
18.0 |
40 |
1.1/2 |
76 |
76 |
44 |
48 |
64 |
76 |
11.0 |
12.5 |
18.0 |
18.5 |
50 |
2 |
86 |
86 |
48 |
51 |
76 |
92 |
12.5 |
16.0 |
19.0 |
19.0 |
65 |
2.1/2 |
92 |
92 |
60 |
64 |
92 |
108 |
16.0 |
19.0 |
23.5 |
29.0 |
80 |
3 |
108 |
108 |
65 |
68 |
108 |
127 |
19.0 |
22.0 |
26.0 |
30.5 |
100 |
4 |
121 |
121 |
68 |
75 |
140 |
159 |
22.0 |
28.5 |
27.5 |
33.0 |
| | | |
|
|
